A4 Plus Wifi Soil Moisture Sensor with Irrigation App

$1,675

FREE Shipping

Always know when, where, and how much to irrigate. EarthScout helps you irrigate with confidence.  Place EarthScout A4 Plus Data Logger in your greenhouse and receive real time soil moisture, soil temperature, soil EC, air temperature & humidity on the EarthScout Irrigation Desktop or Mobile App by using your WiFi. Only EarthScout TDR sensors have rugged cables that plug into a commercial grade data logger, giving you flexibility to monitor 1 plant at 4 different soil depths, or 2 plants up to 20 feet apart at 2 soil depths, or 4 plants at 1 soil depth. Perfect for all types of greenhouse crops and grow mediums.

    • Use the EarthScout Irrigation App to:

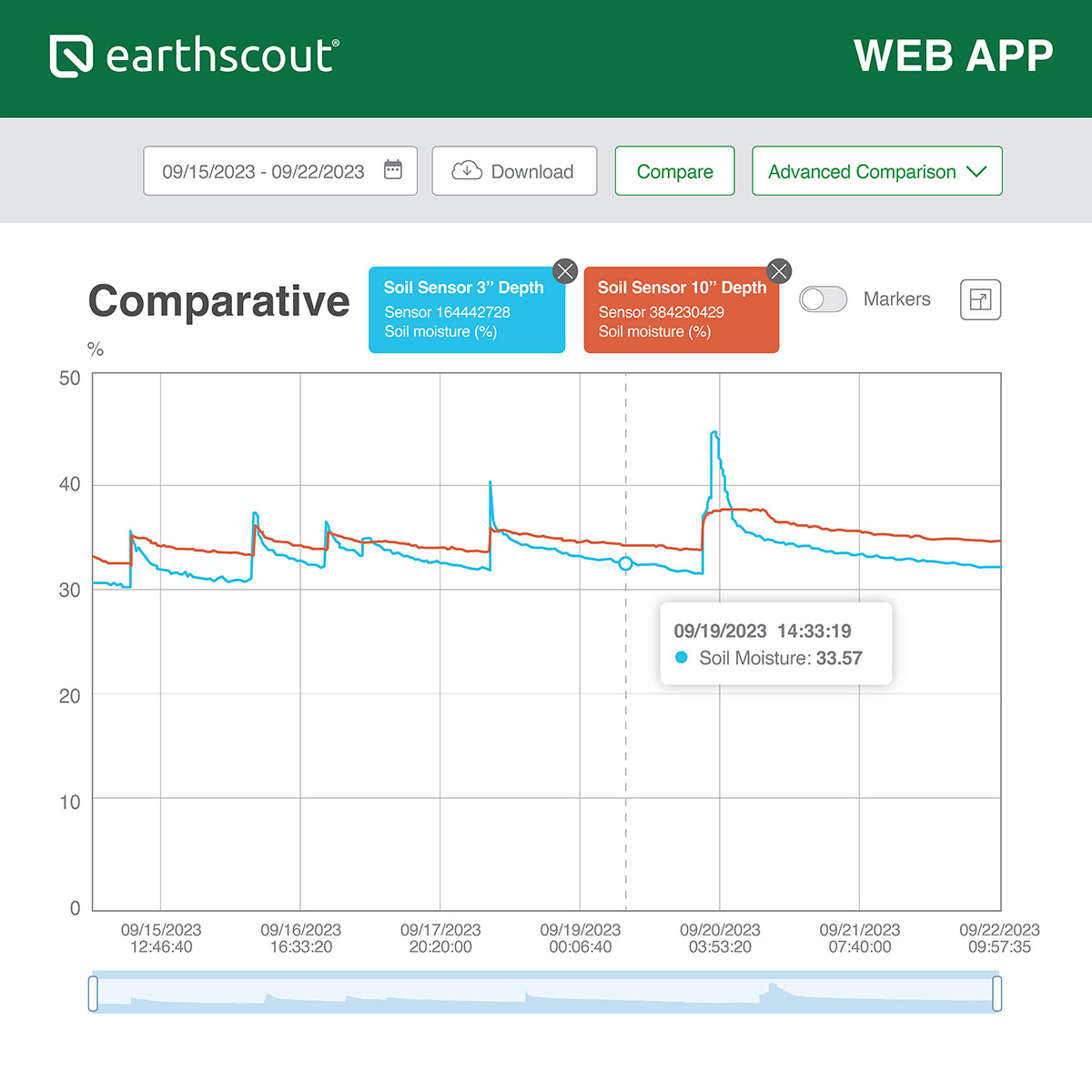

        • Receive real time soil data hourly
        • Calculate and set your Field Capacity (FC)
        • Set your Maximum Allowable Depletion (MAD)

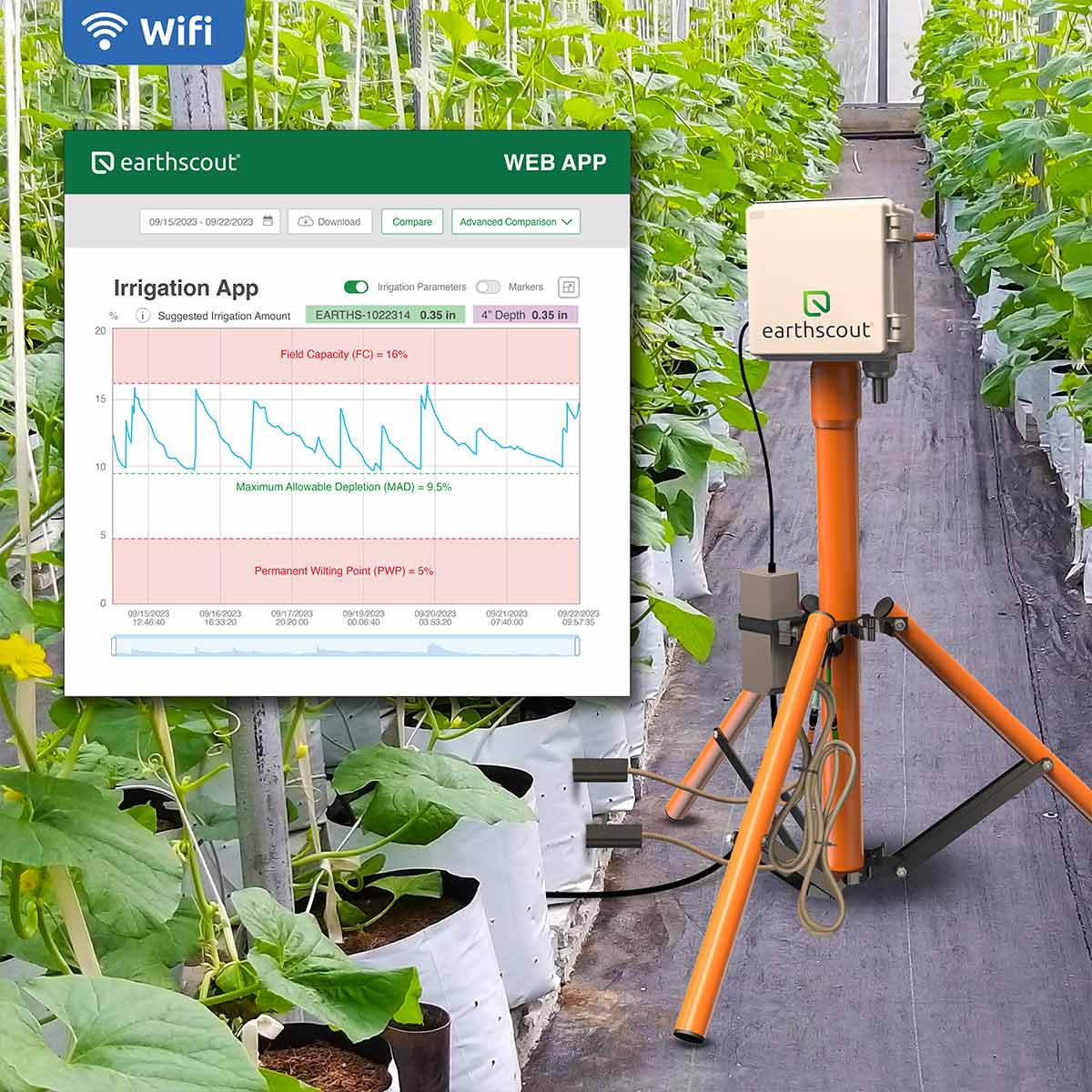

        • Simply irrigate between the FC and MAD lines (see Irrigation App graphic)

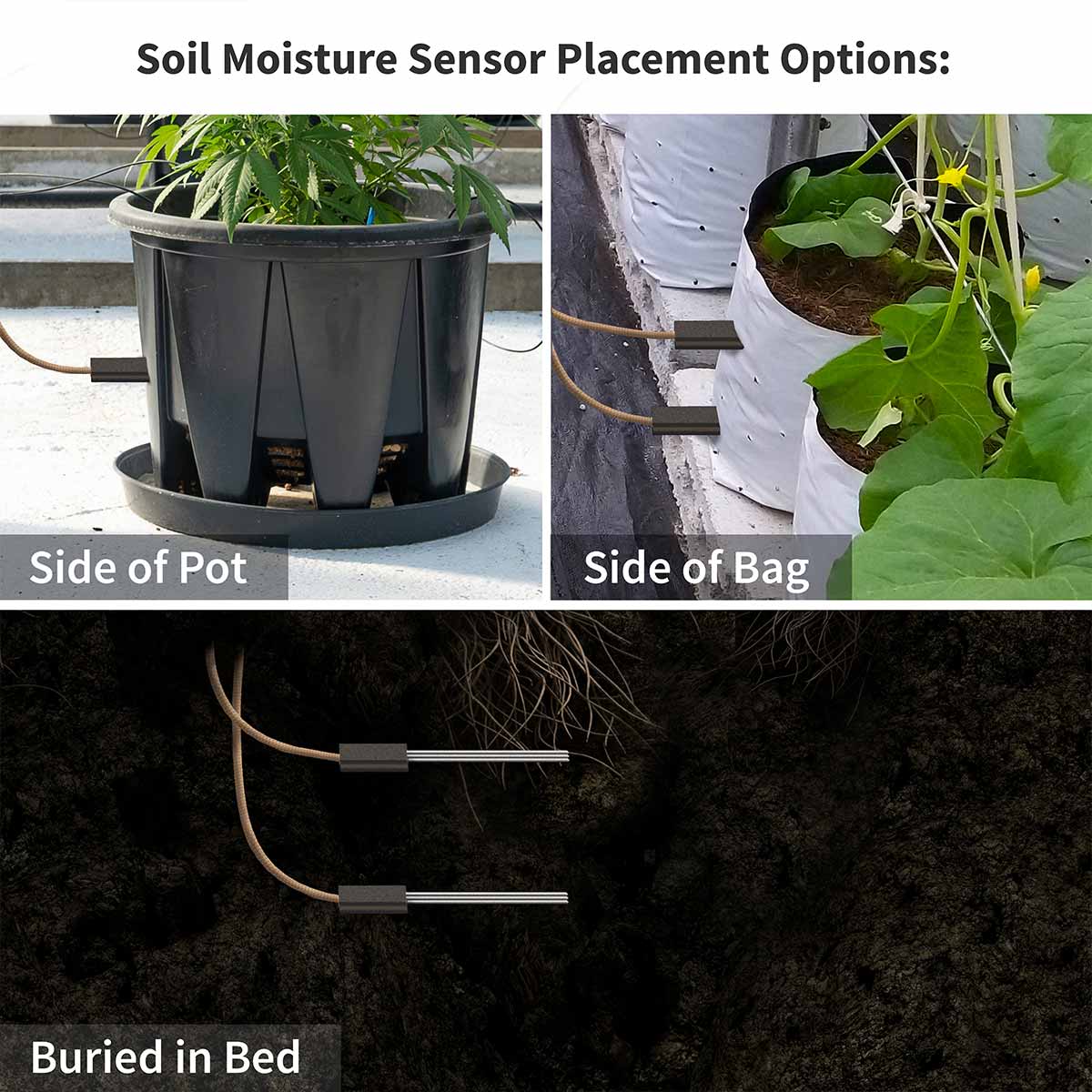

    • Research-grade TDR (SDI-12) Soil Moisture Sensor installs quickly in undisturbed soil and monitors soil moisture, soil temp, and soil EC. Requires no calibration or slurry.

    • TDR Soil Moisture Sensor cables available in 6 or 15 foot lengths. Call us if longer cables are needed.

    • Portable & easy to use

    • Free installation & tech support

Price includes: EarthScout Irrigation App, 1 TDR (SDI-12) Soil Moisture Sensor with 6′ cable, built-in Air Temp & Humidity Sensor, 4 Plug & Play Sensor Ports, Battery and Tripod Stand, 120V AC Adapter, 5-STAR Installation & Technical Support.

Configure Your A4 Plus:

  • Additional Options: *

    TDR Soil Moisture Sensor (SDI-12)

    Add TDR Soil Sensors to monitor soil moisture, soil temp, and electroconductivity (EC) at multiple soil depths or multiple soil zones. Sensor cables are rodent resistant. Call us if longer cables are needed.

    $0.00 – $825.00 each   |

    AddRemove

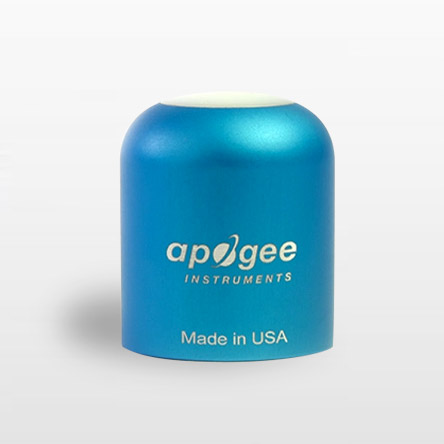

    PAR Light Sensor with Telescopic Pole

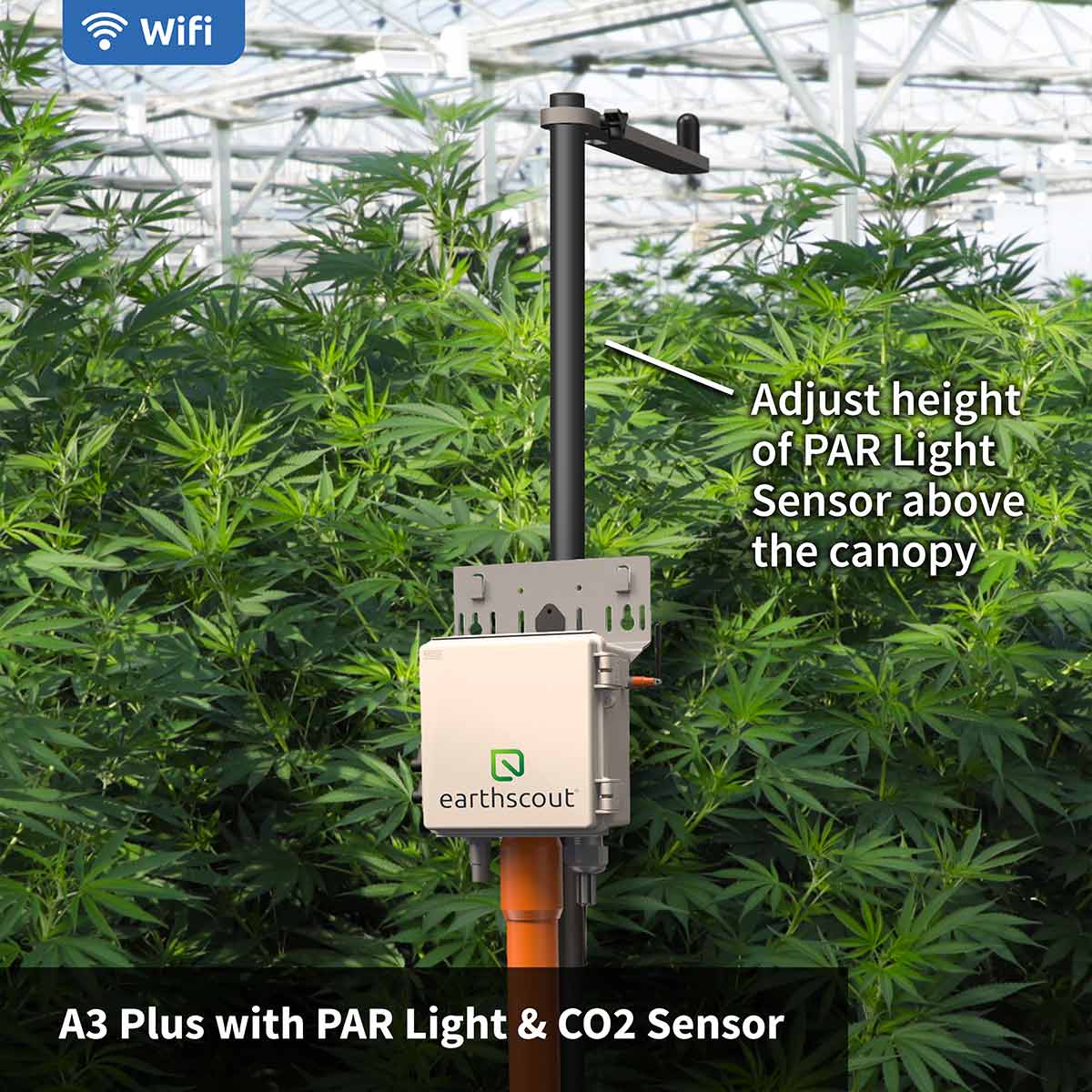

    Plug-in a PAR Light Sensor to monitor PAR light above the crop canopy. Includes telescopic pole.

    $933.00 each   |

    AddRemove

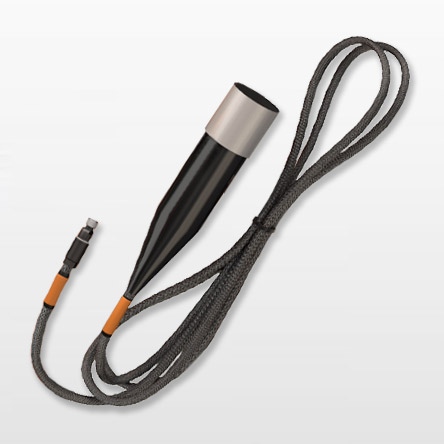

    Oxygen Sensor

    Plug-in an Oxygen Sensor to monitor soil oxygen or air oxygen levels.

    $840.00 each   |

    AddRemove

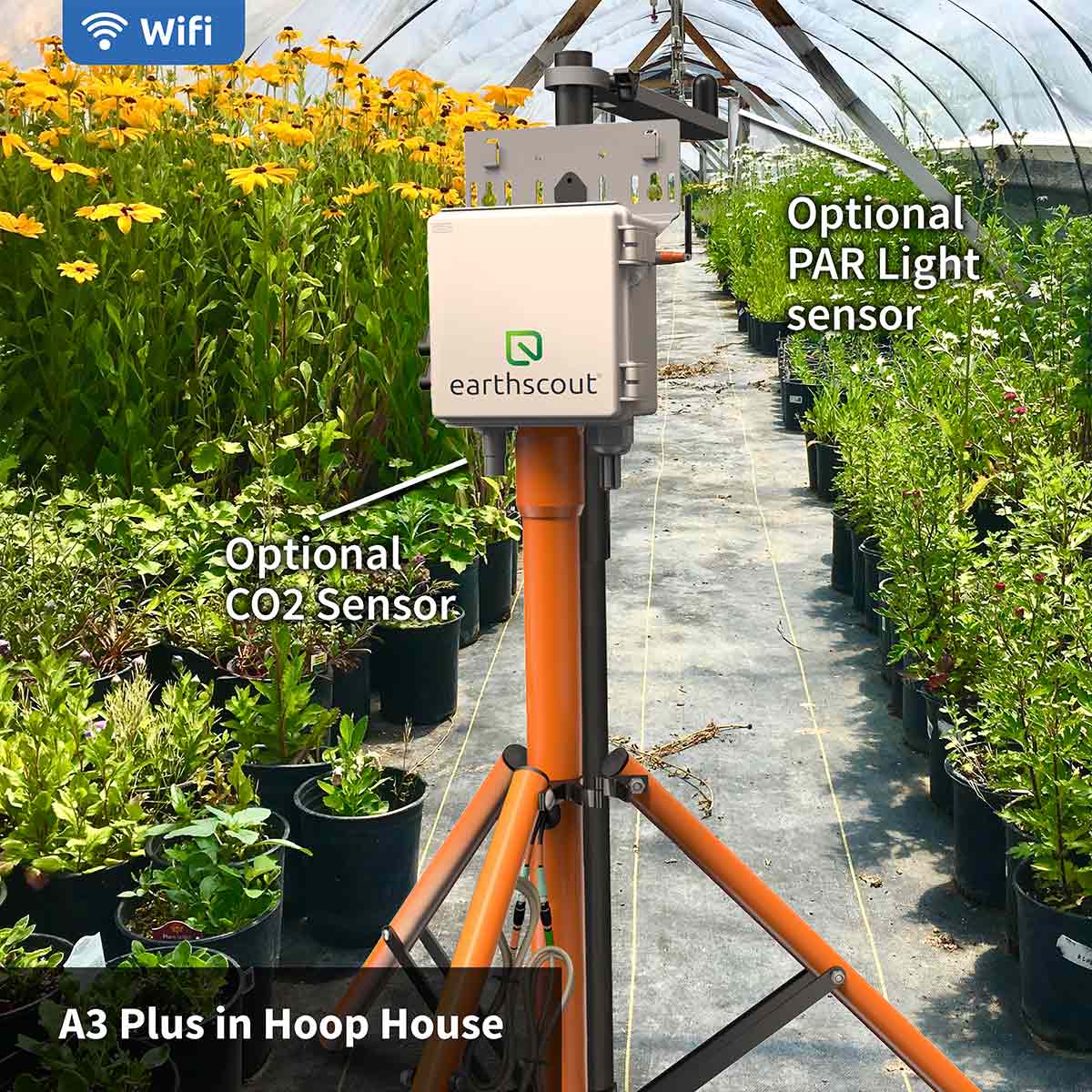

    Air CO2 Sensor

    Built into your EarthScout at the factory, add this sensor to monitor Air CO2.

    $342.00 each   |

    AddRemove

    Burial Tube (16″ x 10″)

    Once installed in the soil, quickly install or remove TDR Soil Moisture Sensors at various depths without digging another hole.

    $80.00 each   |

    AddRemove

    End-Of-Season Agronomic Report

    One (1) field data summary for the previous season. Useful for corporate farm reporting, conservation program compliance, or historical reference.

    $129.00 each   |

    AddRemove

    3-Year Extended Limited Warranty

    Extend your 1-year limited warranty to 3-years.

    $199.00 each   |

    AddRemove

$1,675.00

Standard production time is 4-6 weeks for all EarthScout units and will be shipped via FedEx Ground. For expedited production or shipping options, please contact our sales team at 877-443-7632.

  • Features & Benefits

    A4 Plus Wifi Soil Moisture Sensor is loaded with great benefits:

    • 28″ tall
    • Easy to use and install
    • Customize A4 Plus Wifi Soil Moisture Sensor to operate up to 6 different sensors at one time (Example: 1 built-in Air Temperature & Humidity Sensor, 1 built-in CO2 Sensor, 1 plug-in PAR Light Sensor, 1 plug-in Oxygen Sensor, 2 plug-in TDR Soil Moisture Sensors for monitoring the soil at 2 depths)
    • Connects with your Wifi to send real time soil & environment data to the EarthScout app
    • Cellular version available. Call us for details.
    • Research-grade sensors used by scientists at leading universities
    • Portable & compact
    • Power management (battery, 120V AC adapter) allows for flexible placement and redundancy
    • Mobile and desktop app is intuitive, easy-to-use, and includes the irrigation module
    • Data is stored inside the product as a backup in case of temporary outages
    • 1 year limited warranty
  • TDR Sensors

    The EarthScout TDR (SDI-12) Soil Moisture Sensor is a precision Time Domain Reflectometer (TDR) that provides highly accurate volumetric water content (VWC) measurements in soils and other porous media. Trusted by leading researchers, it offers the same TDR technology found in high-end instruments that cost thousands of dollars more. Compact yet powerful, it integrates precision TDR components and a 15 cm waveguide within a small enclosure.

    Key Advantages:

    • High-Resolution TDR Technology: Delivers 5ps resolution for precise water content measurements (up to 1.00 m³/m³), using advanced waveform digitizing and analyzing firmware for precise time-domain analysis.
    • Improved Sensitivity: Direct coupling of the TDR function to the waveguide eliminates coax cables, enhancing bandwidth, resolution, and measurement sensitivity.
    • Fast Performance: Ultra-fast rise time (150ps), rapid response (<0.25 sec), and low power consumption (0.09 J per reading) make it ideal for both field and laboratory use.
    • Robust and Reliable: VWC readings are unaffected by bulk electrical conductivity (under 1.8 dS/m) and soil compaction, eliminating the need for soil-specific calibration.
    • Durable and Energy-Efficient: Low sleep current (<10 µA) supports long battery life.

    Key Features:

    • Waveform Digitizing TDR with 5ps Resolution
    • Measures Water Content: 0% to 100% VWC
    • Reads Bulk EC: 0 to 2000 µS/cm
    • Accurate Soil Temperature: ±0.25°C
    • Supports Time Domain Waveform Download
    • Ultra-Fast Incident Wave Rise Time: 150ps
    • Fast Measurement Response: <0.25 sec
    • Low Power Usage: 0.09 J per Reading
    • SDI-12 Interface

    Measurement Functions:

    • Volumetric Water Content (VWC): 0% to 100%
    • Medium Permittivity: 1 to 80
    • Medium Bulk Electrical Conductivity (EC): 0 to 2000 µS/cm
    • Medium Temperature: -40°C to +60°C
    • Pore Water EC (Hilhorst Model): 0 to 55,000 µS/cm

    Applications:

    • Agriculture, Turf, Landscaping, Orchards, Greenhouses, Golf Courses, and Nurseries
    • In-Situ Soil Water Monitoring for Agriculture
    • High Credibility Data for CloudBased Analysis
    • Gold Standard VWC Reference
    • Replacement for Neutron Probes
    • Portable Measurements
    • Laboratory and Field Research Instrumentation

    The EarthScout TDR Soil Moisture Sensor is the gold standard for reliable, high-accuracy soil moisture measurement, offering fast, energy-efficient readings for a wide range of agricultural and scientific applications.

  • Specifications

    Weight & Dimensions:

    • Weight: 7.5 lbs.
    • Dimensions Standing: 30”H x 24”W x 20”D.

    Electronics Case:

    • Type 4X polycarbonate water & corrosion resistant (non-submersible), UV rated case
    • Rechargeable, sealed, lead-acid battery for extended use
    • Stainless steel hardware & brackets
    • All fittings and hardware are water and corrosion resistant

    Battery:

    • Absorbent Glass Mat (AGM) technology for superior performance
    • Valve regulated, spill proof construction allows safe operation in any position
    • Power/volume ratio yielding unrivaled energy density
    • Rugged impact resistant ABS case and cover (UL94-HB)
    • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
    • U.L. recognized under file number MH 20845
    • Nominal Voltage: 4 volts (2 cells)
    • Battery Dimensions: 1.89″L x 2.09″W x 3.70″ H
    • Weight: 1.30lbs.

    TDR Soil Moisture Sensor:

    • Sensor Dimensions: 8″L x 2″W x 0.5″D.
    • Monitors soil moisture, soil temperature, and soil electroconductivity (EC)
    • Durable, research grade sensors for use in harsh environments
    • Cables are waterproof sealed for outdoor use
    • Ground level sensors protected with abrasion and rodent resistant braiding

    Orange Pipe & Tripod Legs:

    • High quality, structural grade PVC. 100% solid wall vinyl so color is throughout the pipe
    • Conduit is UV & impact resistant for tough outdoor durability and color retention
    • Tripod top and bottom made of marine grade plastic for durability and UV resistance
  • Installation

    A-Series Installation Manual:
    Learn how to install and uninstall EarthScout in a greenhouse: A-Series Installation Manual.PDF

    Battery Removal & Charging:
    Reference the following PDF for instructions on how to remove and charge your EarthScout battery:  Battery Removal & Charging.PDF

    More Questions?
    Visit earthscout.com/education-center for videos about how to install the EarthScout app, and more! Or, contact us at 1 (877) 443-7632.

  • Warranty

    What Is Covered By This Warranty?
    EarthScout warrants the EarthScout-branded product and the EarthScout-branded accessories contained in the original packaging (“EarthScout Product”) against defects in materials and workmanship when used normally in accordance with EarthScout’s published guidelines, and a period of ONE (1) YEAR from the date of original retail purchase by the end-user purchaser (“Warranty Period”). EarthScout’s published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.

    What Is Not Covered By This Warranty?
    This Warranty does not apply to any non-EarthScout branded hardware products or any software, even if packaged or sold with EarthScout hardware. Manufacturers, suppliers, or publishers, other than EarthScout, may provide their own warranties to you – please contact them for further information. Software distributed by EarthScout with or without the EarthScout brand (including, but not limited to system software) is not covered by this Warranty. Please refer to the licensing agreement accompanying the software for details of your rights with respect to its use. EarthScout does not warrant that the operation of the EarthScout Product will be uninterrupted or error-free. EarthScout is not responsible for damage arising from failure to follow instructions relating to the EarthScout Product’s use.

    EarthScout Purchase Terms
    When you purchase EarthScout there is a 1 year warranty.

  • Return Policy

    EarthScout A4 Plus has a 10 day return policy. The 10 day return policy is void if the plastic shrink wrap around any of the sensors are torn, removed, or there are signs of product use. The customer will be charged a 15% restocking fee for any returned products, and responsible for return shipping costs.
