No Cellular Data Fees for 5 Years! Then $2.99/Month. No App Subscription Fees.

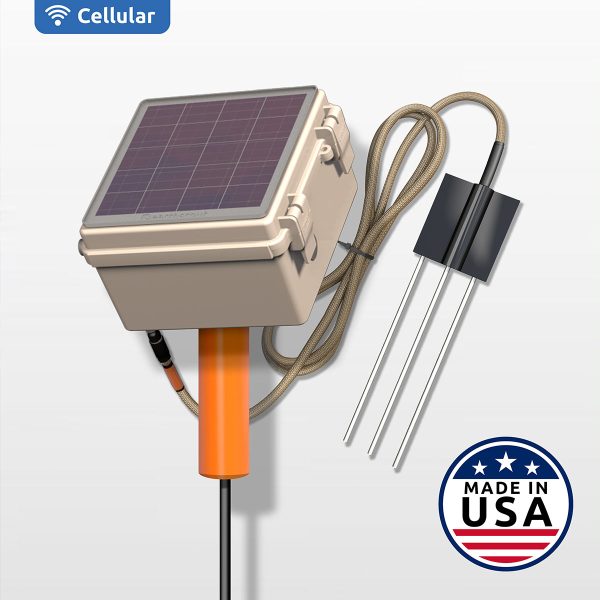

L4 Cellular Soil Moisture Sensor with Irrigation App

$1,475

FREE Shipping

Limited Time Offer: Get a 2nd TDR Soil Moisture Sensor with 6′ cable for FREE with purchase of an L4 or L4 Plus.

Know when, where, and how much to irrigate. EarthScout helps you irrigate with confidence.

  • 3-IN-1 CELLULAR DATA LOGGER: Receive real time soil moisture, soil temp, and soil EC on your phone/laptop. Add an air temp & humidity sensor for $82.
  • 2 “PLUG & PLAY” DATA PORTS: Plug in up to 2 TDR Soil Moisture Sensors at one time to monitor at two soil depths
  • IRRIGATION APP: Includes interactive graphs, compare sensor data, GPS location, set notifications, export data into CSV file, and more (see videos)
  • QUICK & EASY INSTALL: Installs in minutes. Includes free phone support (see install video)
  • RESEARCH-GRADE TDR SENSOR: Considered the gold standard for accuracy. Installs in undisturbed soil. No calibration or slurry required. No risk of soil dry back issues
  • CUSTOMIZABLE: Use up to 2 TDR soil sensors at once.
  • FLEXIBLE DATA COLLECTION: Place TDR sensors at the soil depths you choose. Cables available in 6’ or 30’ lengths for specialty growing, research, or education
  • IDEAL FOR ANY CROP: Including corn, soybeans, potatoes, berries, wheat, fruits & vegetables, citrus & nut trees, vineyards, and flowers
  • MADE IN USA: Proudly designed and manufactured in the USA
  • FREE PHONE SUPPORT: Our customer support team is based in Minnesota
  • 3 YEAR WARRANTY

PRICE INCLUDES:  Cellular Data Logger with 2 Plug & Play Sensor Ports, Mounting Stake, 1 TDR Soil Sensor (moisture, temp, ec), Solar Panel, GPS, Battery & Charger, Irrigation App, Free Phone Support, 3-Year Warranty. Additional sensors listed below must be added at time of purchase and cannot be added later. To learn more, call us at 1-877-443-7632.

    L4 Accessories:

    • *

      L4 TDR Soil Moisture Sensor With 6′ Cable

      Add a TDR Soil Moisture Sensor (SDI-12) with 6' rodent resistant cable to monitor soil moisture, soil temp, and electroconductivity (EC) at up to 2 different soil depths using one EarthScout unit.

      $250.00 each   |

      AddRemove

      Air Temperature/Humidity Sensor

      Plug-in this sensor to monitor air temperature and humidity. Also useful for calculating growing degree units for estimating the growth and development of crops and pests.

      $82.00 each   |

      AddRemove

      Soil Auger Bit (25″ x 4″)

      Insert the Soil Auger bit into your cordless drill and dig a 25" deep x 4" dia. hole in seconds. Then, insert the EarthScout TDR Sensor through the bottom of the hole (up to 32") for a deep soil reading, or into the side of the hole for a shallow reading.

      $59.00 each   |

      AddRemove

      Burial Tube (16″ x 10″)

      Once installed in the soil, quickly install or remove TDR Soil Moisture Sensors at various depths without digging another hole.

      $80.00 each   |

      AddRemove

    $1,475.00

    Average delivery time is 1-2 weeks unless purchased with Amazon Prime. For expedited production or shipping options, please contact our sales team at 877-443-7632.

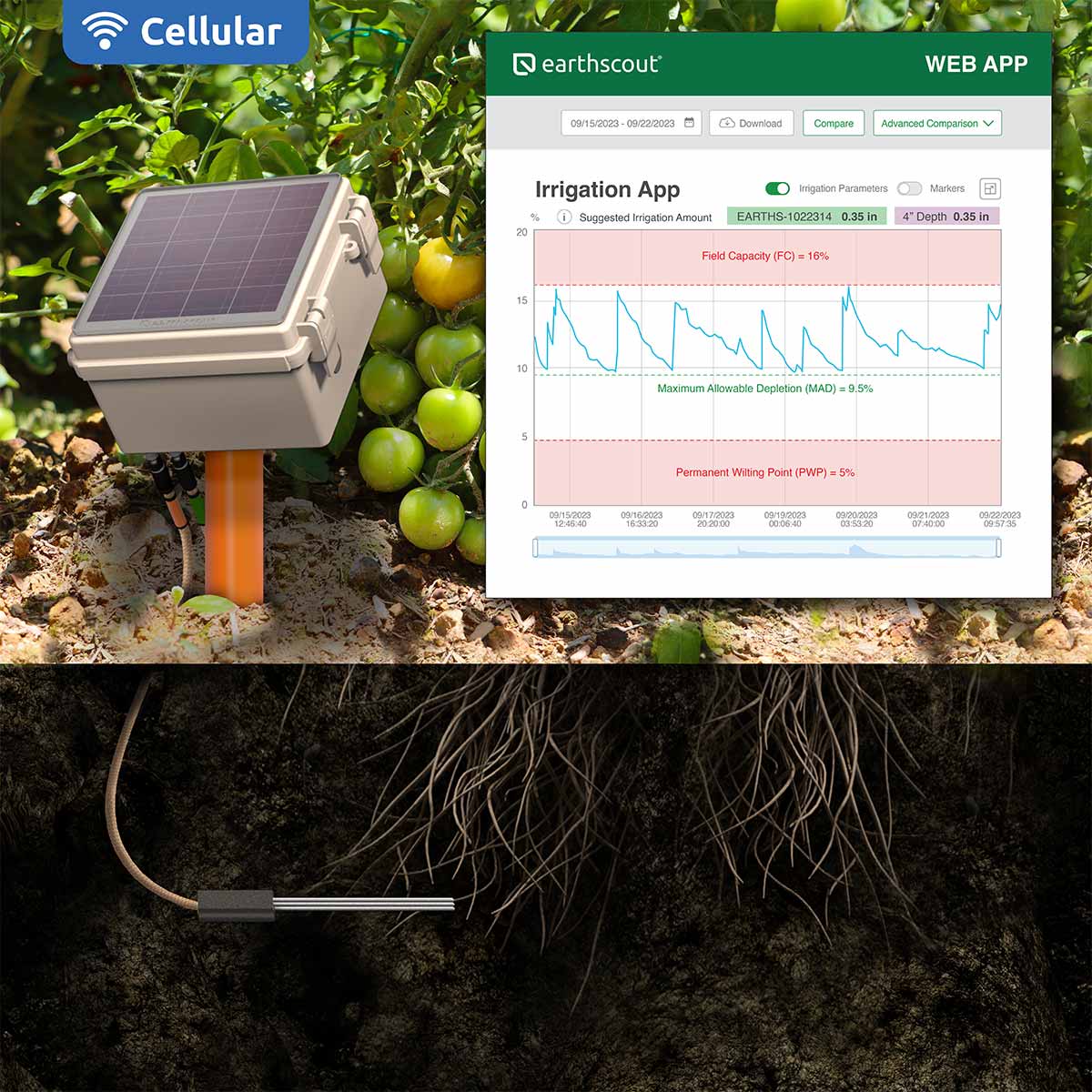

    L4 Cellular Field Data Logger with Irrigation App: Place EarthScout in any field and receive real time soil moisture, soil temperature, soil Electroconductivity (EC), air temperature & humidity on your phone or desktop with the EarthScout Irrigation App. EarthScout L4 is our entry level data logger with 2 TDR soil sensor ports. An optional Air Temperature & Humidity sensor can also be added at time of purchase. There are No Cellular Data Fees for 5 Years! Then, only pay $2.99 a month for data, and no app subscription fees.  EarthScout products are preferred by researchers and universities for their ease of use, accuracy, and reliability.

    EarthScout L4 Cellular Soil Moisture Sensor installs in minutes and no slurry or calibration is needed. Receive real-time soil data, 24/7. Soil Data is logged and sent to mobile and web app in simple graphs. Research-grade TDR sensor is preferred by researchers, and considered the gold standard for precision and accuracy. EarthScout Irrigation App is loaded with great features: Set Field Capacity (FC) and Maximum Allowable Depletion in the app, and then simply irrigate up to FC and dry down to MAD. Numerous other app features include GPS location, set notifications, download your historic field data in a .CSV file, and more. Customize your L4 with up to 2 TDR Soil Moisture Sensors and place them at two soil depths to monitor how water is passing through the soil. Sensor cable are available in 6′ or 30′ lengths. Perfect for specialty growing situations, or for research & education. A built in solar panel continuously charges the battery all season long. EarthScout products are rugged & reliable, commercial grade, and farm tough. EarthScout products are proudly built in Minnesota, USA, by growers like you. EarthScout includes a 3-Year Warranty, and we provide our customers free US based phone support.

    Take A Video Tour Of
    Our Easy-To-Use     Irrigation App

    Irrigate with confidence with EarthScout. Our Irrigation App provides growers real time soil data in simple, interactive charts on their cell phone and laptop, 24/7.

    Description: Watch our Do-it-Yourself install video of our L4 Plus Soil Moisture Sensor in a garlic field with drip irrigation. In this video, we show you how to put L4 Plus in the soil, quickly dig a hole to install our research-grade TDR soil moisture sensors for monitoring soil moisture, soil temperature, and soil Electroconductivity (EC) at a 4” depth and an 8” depth. We then send a data packet to our mobile app to view the data in simple to read charts.

    EARTHSCOUT IRRIGATION APP DASHBOARD TOUR: In this video we have two EarthScout TDR Soil Moisture Sensors installed horizontally in the soil at a 6” and 12” depth (up to 4 TDR sensors can be installed up to 4′ deep). We walk through the Irrigation App dashboard, look at the soil moisture, soil temperature, soil electroconductivity (EC) reading for each EarthScout TDR sensor. We compare the two sensor depths to see the difference in moisture, temperature and EC readings, we look at the air temperature and humidity for the unit, and more.

    EXPORT YOUR DATA: In this video, learn how to export an Excel .CSV File (week, month, year, etc) for crunching your data, importing in into another application, or sharing it with others.

    KNOW THE LOCATION OF YOUR EARTHSCOUT USING GPS: Use our GPS Location feature in the EarthScout Irrigation App to quickly find the location of your L4 Cellular Soil Moisture Sensor on a map.

    Description: In this video, we show how growers can use the EarthScout Irrigation App to set up simple guidelines to ensure their soil moisture remains in the optimal range for plant growth. In the EarthScout Irrigation App, growers can set their Field Capacity (FC), Maximum Allowable Depletion (MAD), and Permanent Wilting Point (PWP). Then, growers can monitor their soil moisture levels in the app and adjust their irrigation to maintain the optimal moisture levels between Field Capacity and MAD. We can help you get set up in minutes… Just give us a call.

    EarthScout TDR Sensors – The Gold Standard: EarthScout Time Domain Reflectometry (TDR) sensors are considered the gold standard in precision sensors, and used in government & university research due to its accuracy and reliability. Measures soil moisture, soil temperature, and soil electroconductivity. Unlike capacitance based sensors, TDR Soil Moisture Sensors install into undisturbed soil, they don’t require calibration, and there is no risk of soil dry back issues, so you can install and uninstall them yourself in minutes and leave them in the soil all season long without worry. Plus, our commercial-grade sensors with stainless steel tines do not rust. Use in natural soil, Rock Wool, Coco Coir, Perlite, Peat, Sand, Clay, and more. Can also be used in high organic matter, high salt, and soil-less root zone mixes. Get an EarthScout Burial Tube for even faster TDR sensor install and uninstall.

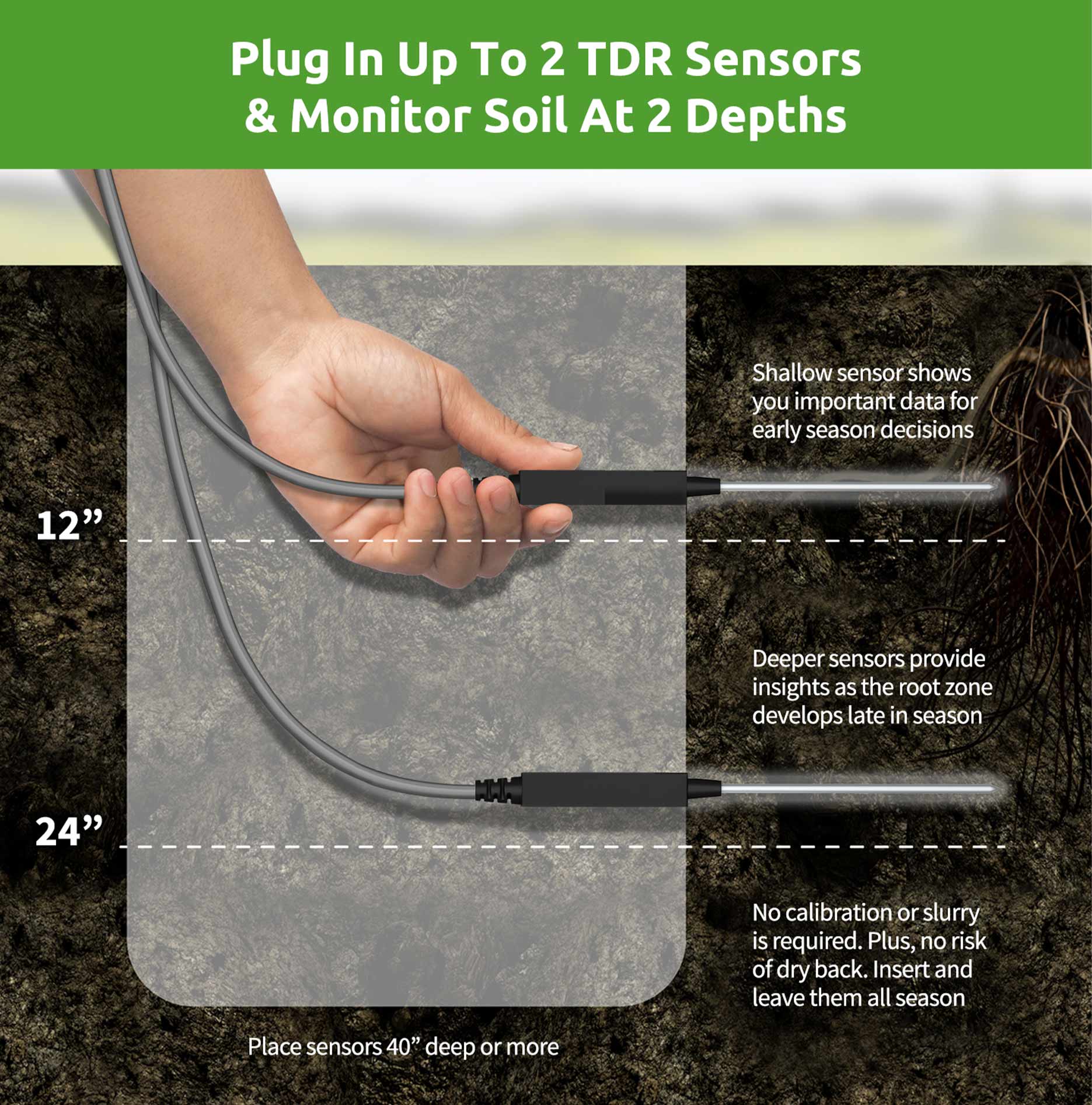

    Plug In Up To 2 TDR Sensors To Monitor Soil At 2 Depths: Dig a hole using a shovel or our Soil Auger Drill Bit and insert your TDR Sensors into the sidewall of a hole at any depth. Insert a shallow TDR sensor to receive important data on the EarthScout Irrigation App for early season decisions. A deeper sensor will provide valuable insights as the roots move deeper in the soil later in the season. EarthScout TDR sensors install in undisturbed soil, and no calibration or slurry is required. Plus, with TDR sensors there is no risk of bad data or reinstallation due to soil dry back. Just insert the TDR sensor into the side of the hole at the depths you choose, fill in the hole with dirt, and leave the sensor in place all season long. Use an EarthScout Soil Auger bit, or an EarthScout Burial Tube for making sensor insertion quick and easy.

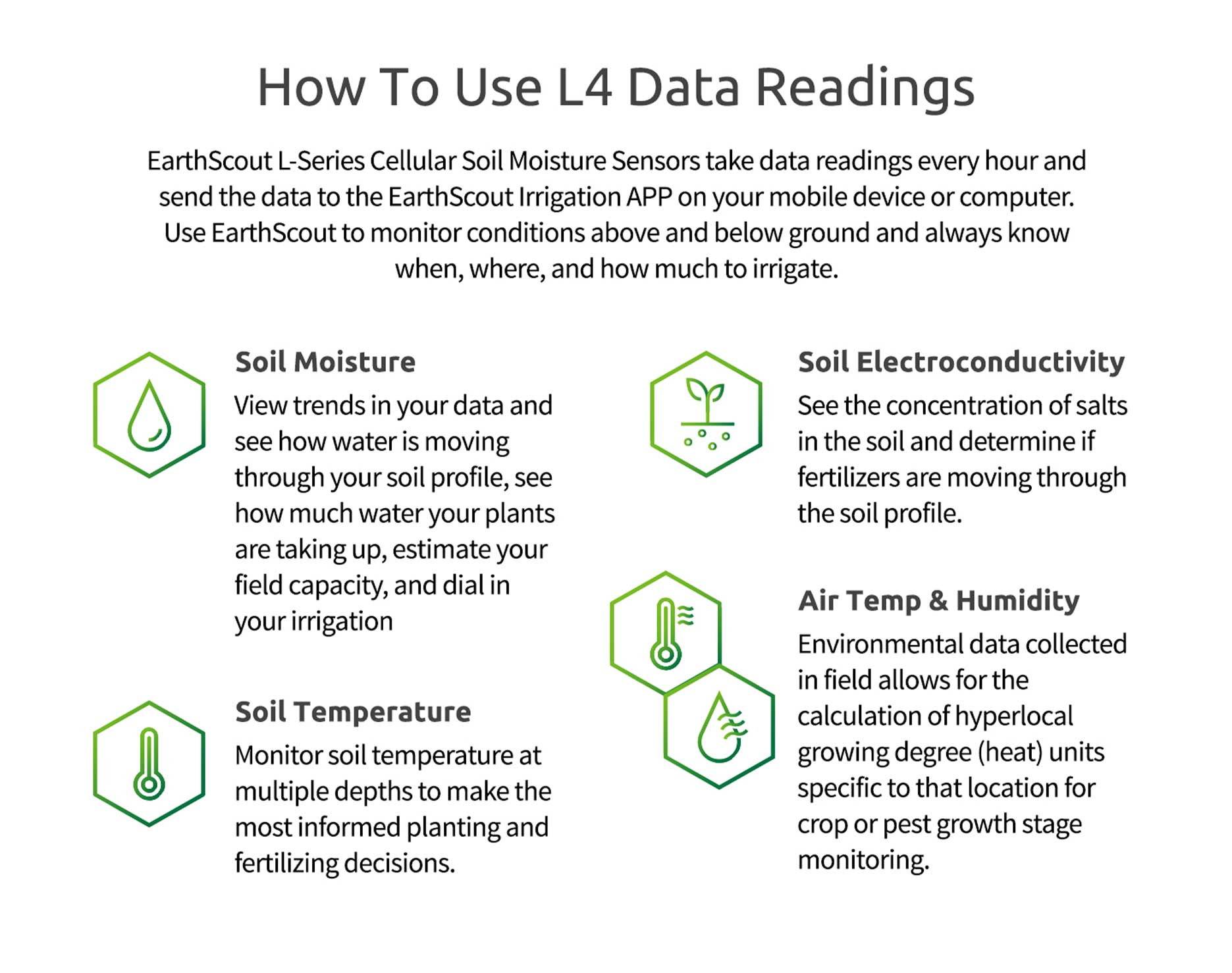

    How To Use L4 Data Readings: EarthScout L-Series Cellular Soil Moisture Sensors take data readings every hour and send the data to the EarthScout Irrigation App on your mobile device or computer. Use EarthScout to monitor conditions above and below ground and always know when, were, and how much to irrigate. Soil Moisture: View trends in your data and see how water is moving through your soil profile, see how much water your plants are taking up, estimate your field capacity, and dial in your irrigation. Soil Temperature: Monitor soil temperature at multiple depths to make the most informed planting and fertilizing decisions. Soil Electroconductivity (EC): See the concentration of salts in the soil and determine if fertilizers are moving through the soil profile. Air Temperature & Humidity: Environmental data collected in field allows for the calculation of hyperlocal growing degree (heat) units specific to that location for crop or pest growth stage monitoring.

    Monitor Any Crop Real Time, 24/7: EarthScout L4 Cellular Soil Moisture Sensors are the perfect solution for monitoring your fields. It’s great for use on a farm, vineyard, or orchard, and for research, and education. It can monitor any crop, including corn, soybeans, potatoes, grapes, wheat, fruits, vegetables, citrus, nuts and rice.

    • Features & Requirements

      L4 Cellular Soil Moisture Sensor is loaded with great benefits:

      • 9″ tall installed in the soil
      • Easy to use and install
      • Customize L4 Cellular Soil Moisture Sensor to operate up to 3 different sensors at one time (Example: 1 plug-in Air Temperature & Humidity sensor, and 2 plug-in TDR Soil Moisture Sensors for monitoring the soil at 2 depths)
      • Wireless Cellular technology sends real time soil & environment data to the EarthScout app from anywhere, anytime using Verizon 4G LTE CAT M1 network in the US, and 2G/3G service for most countries outside the US
      • Wifi version available. Call us for details.
      • Research-grade sensors used by scientists at leading universities
      • IOT smart farming technology
      • Portable & compact
      • Power management (solar with battery) allows for flexible placement and redundancy
      • Mobile and desktop app is intuitive, easy-to-use, and includes the irrigation module
      • GPS – pinpoint the location of EarthScout on the EarthScout mobile app
      • Data is stored inside the product as a backup in case of temporary outages
      • 1 year limited warranty

      Requirements:

      Your mobile device must have the following version or higher for the EarthScout Irrigation App to run smoothly:

      • iPhone: iOS version 13.5 and higher
      • Android: Version 8.1 and higher

      The desktop app is browser based and the software will work smoothly as long as the most current Chrome or Safari browser is used.

    • TDR Sensors

      The EarthScout TDR SDI-12 Soil Moisture Sensor is a precision Time Domain Reflectometer (TDR) that provides highly accurate volumetric water content (VWC) measurements in soils and other porous media. Trusted by leading researchers, it offers the same TDR technology found in high-end instruments that cost thousands of dollars more. Compact yet powerful, it integrates precision TDR components and a 15 cm waveguide within a small enclosure.

      Key Advantages:

      • High-Resolution TDR Technology: Delivers 5ps resolution for precise water content measurements (up to 1.00 m³/m³), using advanced waveform digitizing and analyzing firmware for precise time-domain analysis.
      • Improved Sensitivity: Direct coupling of the TDR function to the waveguide eliminates coax cables, enhancing bandwidth, resolution, and measurement sensitivity.
      • Fast Performance: Ultra-fast rise time (150ps), rapid response (<0.25 sec), and low power consumption (0.09 J per reading) make it ideal for both field and laboratory use.
      • Robust and Reliable: VWC readings are unaffected by bulk electrical conductivity (under 1.8 dS/m) and soil compaction, eliminating the need for soil-specific calibration.
      • Durable and Energy-Efficient: Low sleep current (<10 µA) supports long battery life.

      Key Features:

      • Waveform Digitizing TDR with 5ps Resolution
      • Measures Water Content: 0% to 100% VWC
      • Reads Bulk EC: 0 to 2000 µS/cm
      • Accurate Soil Temperature: ±0.25°C
      • Supports Time Domain Waveform Download
      • Ultra-Fast Incident Wave Rise Time: 150ps
      • Fast Measurement Response: <0.25 sec
      • Low Power Usage: 0.09 J per Reading
      • SDI-12 Interface

      Measurement Functions:

      • Volumetric Water Content (VWC): 0% to 100%
      • Medium Permittivity: 1 to 80
      • Medium Bulk Electrical Conductivity (EC): 0 to 2000 µS/cm
      • Medium Temperature: -40°C to +60°C
      • Pore Water EC (Hilhorst Model): 0 to 55,000 µS/cm

      Applications:

      • Agriculture, Turf, Landscaping, Orchards, Greenhouses, Golf Courses, and Nurseries
      • In-Situ Soil Water Monitoring for Agriculture
      • High Credibility Data for CloudBased Analysis
      • Gold Standard VWC Reference
      • Replacement for Neutron Probes
      • Portable Measurements
      • Laboratory and Field Research Instrumentation

      The EarthScout TDR Soil Moisture Sensor is the gold standard for reliable, high-accuracy soil moisture measurement, offering fast, energy-efficient readings for a wide range of agricultural and scientific applications.

    • Specifications

      Weight & Dimensions:

      • Weight: 4 lbs.
      • Installed in the soil: 9”H x 6”W x 6”D.
      • Uninstalled: 17”H x 6”W x 6”D.

      Electronics Case:

      • Type 4X polycarbonate water & corrosion resistant (non-submersible), UV rated case
      • Rechargeable, sealed, lead-acid battery for extended use
      • Stainless steel hardware & brackets
      • All fittings and hardware are water and corrosion resistant

      Solar Panel:

      • Solar Panel Dimensions: 5.39″H x 5.39″W
      • Lightweight, waterproof, and designed for outdoor, long-term use in any environment.
      • UV and scratch resistant coating.
      • Panel extends period between battery charges.

      Battery:

      • Absorbent Glass Mat (AGM) technology for superior performance
      • Valve regulated, spill proof construction allows safe operation in any position
      • Power/volume ratio yielding unrivaled energy density
      • Rugged impact resistant ABS case and cover (UL94-HB)
      • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
      • U.L. recognized under file number MH 20845
      • Nominal Voltage: 4 volts (2 cells)
      • Battery Dimensions: 1.89″L x 2.09″W x 3.70″ H
      • Weight: 1.30lbs.

      TDR Soil Moisture Sensor:

      • Sensor Dimensions: 8″L x 2″W x 0.5″D.
      • Monitors soil moisture, soil temperature, and soil electroconductivity (EC)
      • Durable, research grade sensors for use in harsh environments
      • Cables are waterproof sealed for outdoor use
      • Ground level sensors protected with abrasion and rodent resistant braiding

      Mounting Stake:

      • Plastic mount with steel rod
    • Installation

      L-Series Installation Manual:
      Learn how to install and uninstall EarthScout in a field: L-Series Installation Manual.PDF

      Battery Removal & Charging:
      Reference the following PDF for instructions on how to remove and charge your EarthScout battery:  Battery Removal & Charging.PDF

      More Questions?
      Visit earthscout.com/education-center for videos about how to install EarthScout in a field, how to install the EarthScout app, and more! Or, contact us at 1 (877) 443-7632.

    • Warranty

      What Is Covered By This Warranty?
      EarthScout warrants the EarthScout-branded product and the EarthScout-branded accessories contained in the original packaging (“EarthScout Product”) against defects in materials and workmanship when used normally in accordance with EarthScout’s published guidelines, and a period of ONE (1) YEAR from the date of original retail purchase by the end-user purchaser (“Warranty Period”). EarthScout’s published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.

      What Is Not Covered By This Warranty?
      This Warranty does not apply to any non-EarthScout branded hardware products or any software, even if packaged or sold with EarthScout hardware. Manufacturers, suppliers, or publishers, other than EarthScout, may provide their own warranties to you – please contact them for further information. Software distributed by EarthScout with or without the EarthScout brand (including, but not limited to system software) is not covered by this Warranty. Please refer to the licensing agreement accompanying the software for details of your rights with respect to its use. EarthScout does not warrant that the operation of the EarthScout Product will be uninterrupted or error-free. EarthScout is not responsible for damage arising from failure to follow instructions relating to the EarthScout Product’s use.

      EarthScout Purchase Terms
      When you purchase EarthScout there is a 3 year warranty.

    • Return Policy

      EarthScout L4 Plus has a 30 day return policy. The return policy is void if the plastic shrink wrap around any of the sensors are torn, removed, or there are signs of product use. The customer will be responsible for return shipping costs.
